| S5
Ethernet Adapter |
| |
Advantages

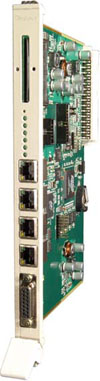

S5-TCP/IP 100 is the high performance Ethernet interface
for SIMATIC S5 PLCs. With the universal communication processor
the connection to TCP/IP as well as to ISO (H1) networks
is possible with 10/100 Mbps.
|
| |
| Domain: |
|
|
• Ethernet interface for Simatic S5 (AG 115U,
AG 135U/155U, AG 150U)
• Visualisation
• Remote maintenance of S5 via LAN and WAN
• Programming the S5 via LAN and WAN
• Communication with Siemens S7 and S5 PLCs
• Spontaneous data traffic with Fetch on Event
• Communication via Modbus on TCP with PLCs of Groupe Schneider,
Beckhoff, Wago etc.
• Send / Receive for communication via the Socket interface
(raw data)
• Integrated 4 port switch for integration of other field
devices
• Pre-configured connections (standard connections) for
layer 7 communication (e.g. OPC communication)
• Additional backup on Compact Flash Card
• S5-TCP/IP and S5-TCP/IP 100 are compatible. When upgrading,
existing configuration files may be used
|
| |
| Technical
Details: |
|
| Ethernet Interface:
10 / 100 Mbps |
4 x TP (RJ45) |
| Serial interfaces: |
1 x AS511, TTY with side-lock bolts |
| CF Slot: |
Type I or II (Standard), 3,3 V |
| Transport Protocols: |
TCP/IP,
ISO on TCP (RFC1006),
TCP/IP with PLC Header,
ISO (H1) |
Application Protocols:
|
S5-AP,
Modbus on TCP,
Send / Receive |
| Operating temperature: |
0 bis 55°C |
| Job Types: |
Send Direct,
Receive Direct,
Fetch active,
Fetch passive,
Write active,
Write passive,
Fetch on Event |
| May be used in: |
AG-115, AG-135, AG-150, AG-155 |
| Required Space: |
1 slot
for use in AG-115 adaption casing required |
| Card Format: |
Double Europe card |
| Conditions: |
Temperature:
Operating: 0 to 60°C
Storing: -20 to 70°C
Transport: -20 to 70°C
Relative humidity: max. 95% |
| Supply Voltage: |
DC +5V via s5 backplane |
| Power Input: |
max. 3A |
| Configuration tool: |
INATnet Parameterization |
|
|
| Order
number: |
| S5-TCP/IP 100 |
|
200-4000-01 |
|
| |
|
| |
|
|
|
