INAT公司產品-S5可編程控制器

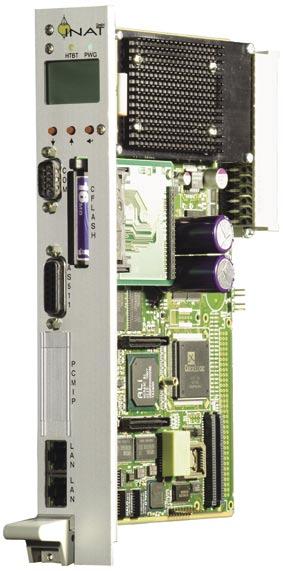

INAT-X5 / -X7

Advantages
High Performance CPU for the S5. With TCP/IP interface




Domain:


  Applicable in automation systems of 115U, 135U/155U and 150U of the Simatic S5
 • Compatible with CPU 416 with RS 7 Software
 • Compatible with CPU 945 (941, 942, 943, 944) or CPU 948 (946/947, 928) with RS 5 Software
 • Synchronous mode: S7 and S5 Program run concurrently (Particularly suitable for extensions of present plants
 • IT function (Email Client, Webserver, FTP)
 • Upgrade your S5 PLC to an S7 PLC in a Flash


Technical Details:

  Serial Interfaces:
1 x AS511 (TTY) or
RS232 with 15pin D-sub female,
1 x RS232 with 9pin D-sub male
  Ethernet-Interfaces:
10 / 100 Mbps
2 x TP (RJ45)
(2- port Switch)
  Interfaces optional: Keyboard and mouse via PS2
via PC-MIP:
4 x RS232
4 x RS422 / 485
graphics 1.280 x 1.024
  Transport Protocols: TCP/IP,
ISO on TCP (RFC1006)
  Serial Protocols: 3964(R), RK512, ASCII, STX/ETX
  RAM Extension: 64 MB SDRAM,
128 KB Bios Flash,
2 MB retained SRAM
  Mass storage: Compact Flash 1 socket
for CF cards or microdrives
  Power Supply: 5 V +/- 5% @5A
  Dimensions [in mm]: Height: 6 HE
Width: 8 TE
    Order numbers:
  X5 / X7 CPU for AG 115U 700-4300-01
  X5 / X7 CPU for AG 135U/155U 700-4310-01
  X5 / X7 CPU for AG 150U 700-4320-01
  RS 5 software, compatible with CPU 945 700-4330-01
  RS 5 software, compatible with CPU 948 700-4331-01
  RS 7 software, compatible with CPU 416/945 (synchronous mode) 700-4340-01
  RS 7 Software, compa tible with CPU 416/948 (synchronous mode) 700-4341-01
Including serial parameterization cable
Note: The software can only be used in combination with a
X CPU hardware. For each X CPU one software module can be ordered. Please specify the order number of the RS Software with your X CPU order!
