INAT公司產品-協定轉換器

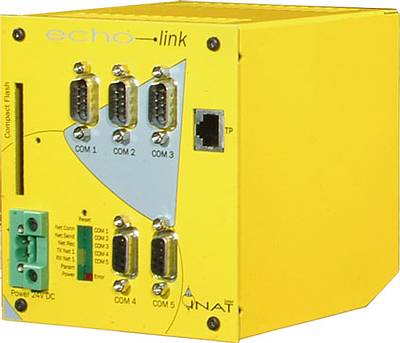

Echolink


Advantages
INAT echolink is a Serial Ethernet converter. With echolink, devices without network adapter are able to communicate via network. Echolink supports a wide range of serial protocols. Therefore echolink is much more than a simple data converter. It supports complex applications such as PLC programming or process data visualisation.


Domain:

 • Visualization, Measurement data logging, Statistics etc.
 • Programming of Simatic S7 / S5 / 505 via LAN and WAN (with VCOM no Softnet* required)
 • Remote maintenance of the S7 / S5 / 505 via LAN and WAN
 • Ethernet interface for Simatic S5 (AG 90U, 95U, 100U, 115U, 135U, 150U, 155U) via PG port
 • Ethernet interface for Simatic S7 (S7-200, S7-300, S7-400) via MPI / PPI port
 • Modbus RTU (serial) to Modbus on TCP converter
 • Active data transfer between PLCs without programming (echoactive)
 • Integration of older systems and devices without Ethernet interface into the network
 • Fetch / Write communication with S5 PLCs without handling blocks
 • Webserver functionality to realize small visualization projects: Visualization without PHP, ActiveX, Perl, Applets et
  al. only with HTML
 • Optional: Integrated switch to connect other network nodes
 • Ethernet interface for Honeywell / Klockner-Moller IPC controllers via CIM port (ABC protocol)


Highlights:

Protocol Diversity

 • S7 PLCs with MPI/PPI interface ==> with MPI onboard no MPI adapter is required
 • S5 PLCs and programming devices
 • all devices with RS232/422/485 interface e.g. Scales, Scanner
 • Klockner-Moeller IPC-620 PLCs


Decodes Protocols up to Layer 7

 • Conventional Serial Ethernet Converters master only protocols from layer 1 up to layer 4 of the ISO / OSI reference
  model. Communication is restricted to the transport layer i.e. transfer of raw data (layer 4 communication,
  Send /Receive)
 • In addition to the transport protocols, echolink supports application protocols. Protocol conversion of all seven
  layers of the ISO / OSI reference model is possible.
 • As these "higher-level" protocols are supported, complex applications become possible: process data
  visualisation, communication between different controller worlds (Siemens, Schneider etc) or programming.


Echoactive Function: Data transfer between PLCs without changing the program

 • A distinction is drawn between active and passive job types: active writing of data to the partner station and active
  fetching of data from the partner station are active job types as well as Send / Receive jobs.
 • What kind of jobs are possible depends primarily on the used protocol. With certain protocols only passive jobs
  are possible (e.g. S5 PLC with AS511 protocol: PLC is able to receive data and to provide data, but the PLC is
  not able to send data actively or to fetch data from another PLC)
 • With the function echoactive, devices, that are - in consequence to their protocol - not able to execute active
  jobs, receive this possibilty.
 • Echolink is monitoring specific data-values in the PLC. When the values change, then the echolink is fetching the
  data from the PLC and is sending them across the network to the specified communication partner.
 • WITHOUT CHANGING THE PLC PROGRAM

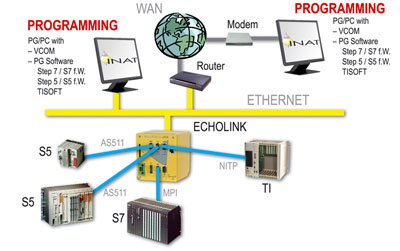

Programming

 • Programming the S7/S5 is possible via Ethernet with S7/S5 for Windows as well as with STEP* 5 / STEP* 7.
 • With VCOM, included in the range of delivery, Softnet* is no longer required.
 • Programming AEG PLCs (A 120 / A 150) via LAN and WAN

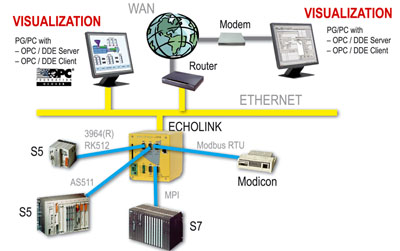

Visualisation
 • Programming AEG PLCs (A 120 / A 150) via LAN and WAN

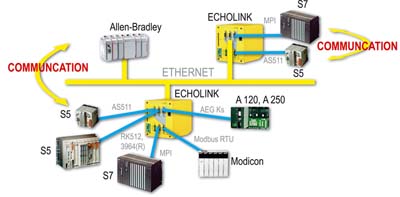

Communication between PLCs

 • Communication between PLCs via LAN and WAN.
 • Communication between two PLCs serially connected to echolink



Mounting

 • Echolink is equipped with top hat rail adapter
 • An adapter for S7-300 rail mounting is available as option


Easy Parameterization

 • Online via IP
 • Online via H1
 • Seriall
 • Offline


Technical Details:

 • Including top hat rail adapter
 • Including VCOM for Programming via Ethernet


Note:

A connector power pack is not included in the delivery, If necessary order it separately.
  Version EURO
  Version UK
 • Version USA
Echolink basic is not equipped with interface modules, You has to order it separately.
 • A maximum number of two MPI interfaces
 • MPI interface on COM1 is not possible
 • A maximum number of four RS485 interfaces
 • With one ore more TTY interface(s) a maximum number of two RS232 interfaces
 • With one or more RS485 interface(s) a maximum number of two RS232 interfaces
 • Combination of RS422 and RS485 not possible


Order data
  Ethernet Interface: 1 x RJ45, 10 / 100 Mbps
  Transport Protocols: TCP/IP,
ISO on TCP (RFC1006),
TCP/IP with PLC Header,
ISO (H1)
  Applications Protocols S7 Protokoll,
S5-AP,
Modbus on TCP,
Send / Receive (Raw/ Socket)
  Serial Interfaces: 1 up to 5 serial interfaces;
Basic device without interface modules
  Serial Protocols AS511 (S5-PG),
3964(R), RK512,
Modbus RTU,
MPI, PPI,
NITP / K-Sequence
Telnet,
optional:
ABC (IPC 620 PLCs)
  Power Supply: 24 V DC, ca. 1,1 A
  Dimensions[in mm]: L = 110, D = 120, H = 120
    Order Numbers:
echolink echolink basic 200-6500-01
Adapter for S7-300 rail mounting 700-5600-01
Serial protocol for IPC PLCs 200-6560-01
Interface modules for echolink basic MPI 200-6580-01
MPI 2 port 200-6580-02
RS232 200-6581-01
TTY (20 mA) 200-6582-01
RS422 floating 200-6583-01
RS485 floating 200-6585-01
Connector power pack 24 V DC Version EURO 700-5596-01
Version UK 700-5596-02
Version USA 700-5596-03
