INAT公司產品-協定轉換器

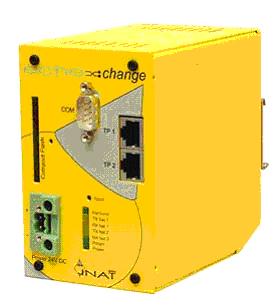

echochange


Advantages:
More and more Ethernet is being used in industry. Several protocols based on Ethernet are available: ISO (H1), ISO on TCP (RFC1006), Modbus on TCP, EtherNet/IP or AB Ethernet. Although these protocols are similar, communication between the corresponding networks is not that simple: Echochange provides the solution: This produces "relationships" between plants that were previously imcompatible.


Domain:

 • Connects different controller worlds:
   Siemens (S7,S5)
   Rockwell Automation (Allen-Bradley ControlLogix, CompactLogix, PLC-5, SLC 500)
 • Connects PCs with standard TCP/IP to Industrial Ethernet
 • Remote maintenance of ISO (H1) stations
 • Gateway between separated networks (protocols run on separated media)
 • Conversion of application protocols Raw Data <=> EtherNet/IP; AB Ethernet
 • Converter in a heterogeneous network (protocols run on the same media)

Application examples
1. Conversion of application protocols: 2 separated networks
Raw <-> EtherNet/IP

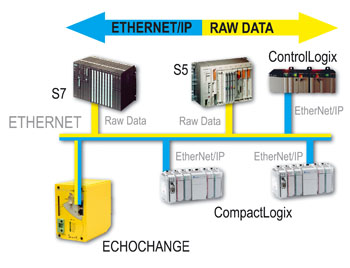

2. Conversion of application protocols: 1 heterogeneous network
Raw <-> EtherNet/IP


3. Conversion of the transport protocols: 2 separated networks
TCP/IP <-> ISO (H1)

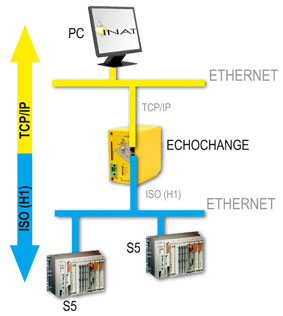

4. Conversion of the transport protocols: 1 heterogeneous network
TCP/IP <-> ISO (H1)


Technical Details:
 • Including top hat rail adapter

Note:
A connector power pack is not included in the delivery. If necessary order it separately
 Version EURO
 Version UK
 • Version USA


Order data
  Ethernet Interfaces: 2 x RJ45, 10 / 100 Mbps
  Transport Protocols: TCP/IP,
ISO on TCP (RFC1006),
TCP/IP with PLC Header,
ISO (H1)
  Application Protocols: Modbus on TCP,
Send / Receive (rawdata)
optional:
EtherNet/IP (CLX),
AB Ethernet (SLC 500, PLC-5)
  Serial Interface: 1 x RS232, for serial configuration
  Active Connections: 10 (may be expanded to 30)
  Power Supply: 24 V DC, ca. 0,8 A
  Dimension[in mm]: L = 76, D = 120, H = 120
    Order Numbers:
echochange echochange, 10 connections 200-6000-01
echochange, 30 connections 200-6000-30
Adapter for S7-300 rail mounting
700-5600-01
EtherNet/IP and AB Ethernet
for Allen-Bradley PLCs
200-6000-01
EtherNet/IP Protocol for Allen-Bradley PLCs 200-6100-01
Connector power pack 24 V DC Version EURO 700-5596-01
Version UK 700-5596-02
Version USA 700-5596-03
