INAT公司產品-協議轉換器 |
| |
| MPI
/ PPI Adapter |
| |
Direct
access via MPI to S7-400, S7-300 or via PPI to S7-200. Converst
the data of a RS232 / USB interface to MPI / PPI bus. |
| |
| Areas of Application |
| |
| •
Visualization, Measurement data logging, statistics
• Programming
• Connect a PC or Notebook to
a S7 PLC via serial interface
|
| |
| |
|
| |
| Order data |
| RS232 – MPI / PPI adapter,
187,5 KBaud |
With integrated LCD display
RS232, 9pin D-sub female, up to 115,2 KBaud
– MPI / PPI, 9pin D-sub male, up to 187,5 KBaud Length
: 3 meters |
400-9359-MPI |
|
|
|
| |
| Order data |
| RS232 + USB – MPI / PPI adapter,
12 MBaud |
With integrated LCD display
and membrane keys RS232, 9pin D-sub female, up to
115,2 KBaud – MPI / PPI, 9pin D-sub male, up to 12 MBaud
USB, USB-A connector, USB 1.0 – MPI / PPI 9pin D-sub
male, up to 12 MBaud Length : 3 meters |
400-9352-MPI |
|
| |
|
| |
| Order data |

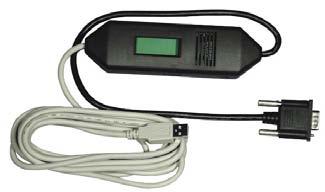

| USB – MPI / PPI adapter, 12
MBaud |
With integrated LCD display
and membrane keys USB, USB-A connector, USB 1.0 –
MPI / PPI 9pin D-sub male, up to 12 MBaud Length
: 3 meters |
400-9352-USB |
|
|
 |
|
| Order data |
| Network adapter |
To lengthen the MPI / PPI
adapter on MPI side (24 V) |
400-9350-04 |
|
| |
|
