Modem Access Router |
| |
|
|
|
Remote Access
– access production data whenever and from wherever you
want. Data is continously available:
reaction to problems can be immediate; your production is
maintaned.
Usually ISDN Routers are used to connect different Ethernet
networks via WAN (Telephone, Internet).
If ISDN is not available or could only be installed at great
expense, you can use a Router with PSTN Network Compatibility.
Echoroute is such a Router. |
|
| Technical
Data |
| Protocols: |
PPP, static IP routing, NAT (post Routing),
DHCP client |
| Security Features : |
PAP, CHAP, MS-CHAP, Call Back, Firewall
(available ex quarter II/05) |
| Physical Interfaces: |
• Ethernet LAN connection: 1 x RJ45, 10/100
Mbps
• 1 x RJ45, for analog connection (cable included in
delivery)
• 1 x RS232, for local / serial configuration |
| Power Supply : |
18...36 V DC, ca. 1,1 A |
| Dimensions [in mm]: |
76 x 120 x 120 |
| Scope of Supply: |
• Echoroute
• 1 x Telephone cable, RJ45-RJ11, 5m
• 1 x Adapter RJ11-TAE-F |
| Order number : |
200-6900-01 |
|
| |
| Applications |

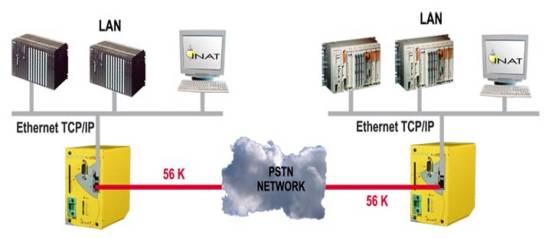

| Application 1: PSTN LAN
to LAN ROUTER |
•
Data transfer between Ethernet LANs via PSTN
• Secure LAN to LAN connectivity
e.g. remote maintenance of PLCs |
|
| |

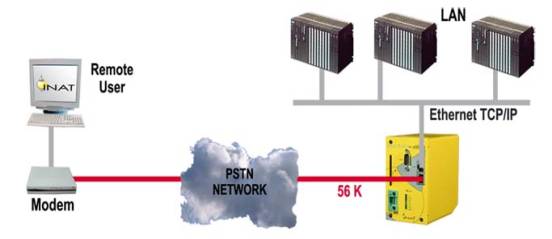

| Application 2: REMOTE ACCESS |
•
Direct coupling between LAN and remote User
via Modem / Router connection e.g. for
programming (programming
software runs locally) |
|
| |

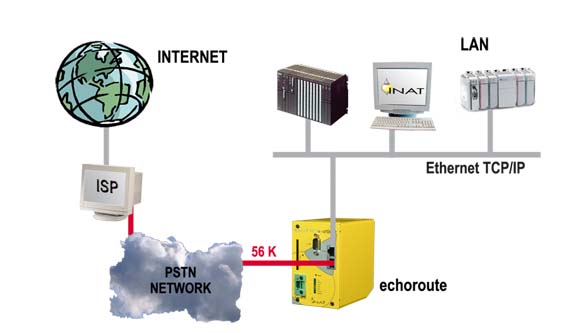

| Application 3: INTERNET
ACCESS |
•
The classical application: enables multiple
users to access the Internet
• Connect to the Internet at
56K using Point-to-Point Protocol (PPP) |
|
